Teazit Cameras¶

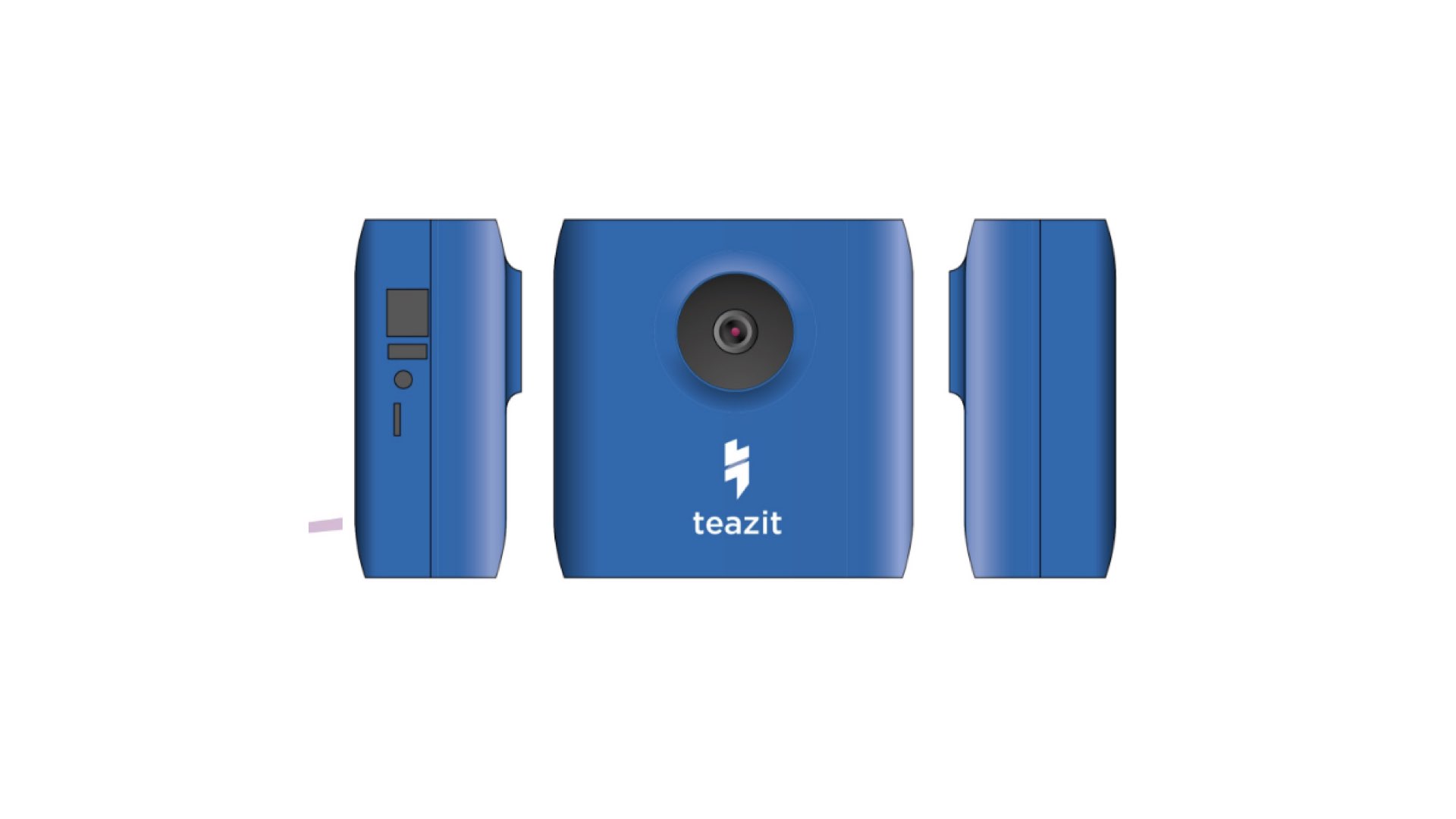

Teazit 4k Camera
Teazit released it's first 4k connected camera. Our R&D team focused on building the best camera dedicated to events with low light conditions. Resulting with the first camera using Sony sensor* dedicated to live-streaming events.
*4k sensor with Low light sensibility
Summary¶
Motivation¶
Our goal, at Teazit, is to re-work the fixed plan and create the best live streaming experience to your fans. Our cameras are dedicated to live-streaming and work directly and closely with our live-streaming service.
Functionalities¶
| Functionality | Description | State |
|---|---|---|
| Plug and Play | When power and Ethernet is plugged to the camera, our software automatically authenticate, configure and start a stream when needed. | Y |
| Remote access | Dedicated backoffice accessible from www.teazit.fr | Y |
| 4k sensor | The term "4K" is generic and refers to any resolution with a horizontal pixel count of approximately 4,000. | Y |
| Region of Interest - ROI | Creating multiple region of interests. The camera will be able to switch automatically from one ROI to another. Adding dynamism to your live-streaming with only one camera | April 2019 |
| Tracking | Creating a ROI with someone you want to track, and let the camera follow this person | April 2019 |
| Multi cameras | Plug additional Teazit camera together to create mutliple point of views. | Dec 2019 |
Specifications¶
Software¶
Creating our own camera allow Teazit to fully manage the software running on it. This software is dedicated to live-streaming and recording the best quality possible regarding your internet network.
The camera is fully manageable through our live-streaming service. You can start and record a live-stream anywhere in the world. As long as the camera has access to the internet.
You can find more information about our software architecture here
Video¶
| Sensor | Sony 4k Sensor | |
| Processor & Encoder (SoM) | Nvidia TX1 | |
| Sensor Resolution | 12.4 Megapixels | |
| Capture Resolution | 4K - 3840 x 2160 pixels | |
| Aspect Ratio | 16:9 | |
| Frame Rate | 30fps | |
| Video - Ethernet Streaming | Up to 1080p30 at 6Mbps max | |
| Video - LTE Streaming | Up to 1080p30 at 4Mbps max | Work in progress |
| Video - MP4 Recording only | 4k recording* | Work in progress |
*4K recording requires SD card to be UHS Speed Class 3 (U3) or higher.
Microphone¶
Teazit work with Rode to capture audio during event. We design Teazit camera to handle all events configurations. Our microphone is pluggable and we can either capture audio form a simple ambient micro or directly on the sound desk.
- Simple Microphone
- Lapel Microphone
- Ambient Microphone
- Directly from a sound desk
Networking¶
| Ethernet | ||
| Wi-Fi | Work In Progress | |
| LTE - Mobile network | Work In Progress |
Streaming bandwidth requirements
Check your connection using speedtest.net before purchasing Teazit Camera for live streaming.
| Full HD | 1080p | Up to 4 Mbps (At least 3 Mbps of steady upload speed recommended) |
| HD | 720p | Up to 3.5 Mbps (At least 2 Mbps of steady upload speed recommended) |
| SD | 540p | Up to 1.5 Mbps (at least 800 kbps of steady upload speed recommended). |
